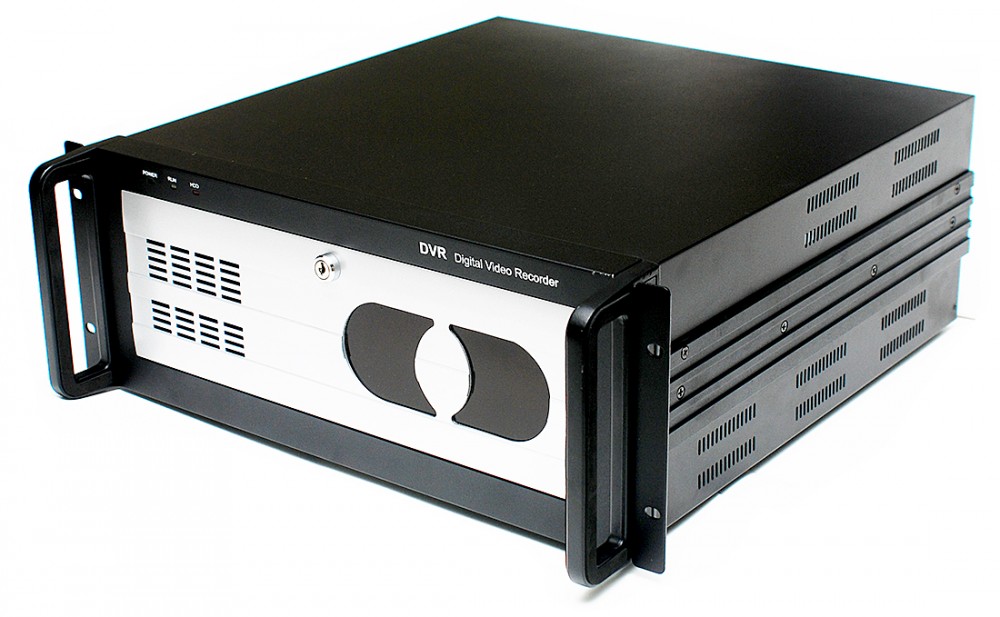

KN-8032
페이지 정보
4,006 2016.08.29 11:00
첨부파일
본문
-
- E-Map Two-Way Audio
- High Quality Recording Resolution
- Video Codec(H.264)
- Simultaneous Display & Playback
- Smart Phone Support
- DDNS Support
Feature
- H.264, MPEG-4 IP Products.
- 12M,8M,5M, 3M, 2M, 1M High Quality Recording Resolution
- Simultaneous Multi-Channel Display & Playback
- Pentaplex ( Live Monitoring, Recording, Playback , Transmission & Backup )
- Remote Monitoring, Playback, Backup & Setup through Network
- E-Map, Dual Stream and Smart HDD Monitoring
- Various language support(Korean,English,Chinese,Japan,Russian,Spanish)
- User Friendly GUI and Easy Setup Router ( DDNS Support )
- Remote Monitoring by Remote Software and CMS
Main Functions
- Branded IP Camera (SAMSUNG, Probedigital, Truen, VIVOTEK, AXIS, ACTI, Arecont,’ H.264, MPEG-4 ).
- CIF, D1,1.3M,2M,3M,5M,8M,12MPixel IP Camera (Some model can operate IP PTZ ) Support
- You can get the video from another PC DVR in the Hybrid NVR
- Quick, Panorama, Smart Search & Snapshot, Bookmark, Digital Zoom Search, Thumbnail Search
- VDB & AVI, MP4, JPG, BMP, PNG Backup, Real-time network backup, massive NAS backup
- Various Data Backup Devices ( CD, DVD-RW & USB 2.0 port supported )
- Various Screen Division Mode , Display & TV-OUT Rotation, OSD ( On Screen Display )
- Channel Screen Covert and Channel Swapping
- PTZ ( PAN / TILT / ZOOM / FOCUS / IRIS / AUTO PANNING / PRESET ), RS-232, Network Interface
- PTZ Auto Touring Schedule & Privacy Masking Support
- Powerful Event Log Information Search ( Status Search by Each System, Network, Event & User )
- Emergency & Intensive Recording
Compatible Brand
Specification
| Model | KN-8032 |
|---|---|
| CPU | I 7 |
| HDD | MAX 6 HDD (5 HDD + DVD-RW) |
| HDD Capacity | 2 TB |
| O/S | Windows 7 |
| RAM | 8 GB |
| Video In | 32 CH |
| Video Output | RGB(VGA), HDMI |
| Audio In / Out | 16 / 1 |
| Backup | CD-RW,DVD-RW, USB HDD, USB CD-RW |
| Display | 480fps |
| Recording Speed | 480fps |
| Screen Division | 1 / 4 / 6 / 8 / 9 / 10 / 13 / 16 / 25 / 33 ( Auto Rotation Included ) |
| Resolution | 640 x 480, 640 x 240, 320 x 240, 720 X 480 , 720 X 240, 360 X 240, 640 x 480, 640 x 240, 320 x 240, 160x129, 176x120, 176x144, 800x600, 1024x640, 1024x768, 1280x720, 1280x800, 1280x960, 1280x1024, 1600x1200, 1920x1080, 2048x1536, 2592x1920 etc |
| Compression Type | H.264, MPEG-4 |
| Compression File Size | IP Camera Manufacturer’s Standard |
| Recording Mode | Scheduled / Continuous / Motion Detection |
| PTZ Control & Port | PAN / TILT / ZOOM / FOCUS / AUX Control / LIGHT Control |
| Remote Control | PTZ Control, Emergency Recording |
| Remote Transmission | Live Monitoring, Playback, File Saving and Event Notification |
| Web Function | Video & Audio monitoring and search on web / Support Dynamic IP |
| Etc | PTZ Scheduling, E-Map, Intelligent Search, Smart HDD |
| Storage Temp. / Humidity | -20 ~ 60`C / 20 ~ 95 % RH |
| Operation Temp. / Humidity | -5 ~ 40`C / 20 ~ 80 % RH |
| Power | AC100~200V 2A / AC200~240V, 50/60HZ |
| Dimension / Weight | 440mm(w)*175mm(H)*500mm(D) / 15kg |
